Specifications
|
Panel size |
10.1",15",15.6", 17", 18.5", 21.5", 23.8" |
|
Brightness (cd/m²) |
1500 nits sunlight readable |
|
Brightness control |
Light sensor/OSD |
|
Contrast ratio |
1000:01:00 |
|
View angle |
89°/89°/89°/89° |
|
Support Color |
16.7M |
|
Backlight |
WLED, 50K hours |
|
Touch panel |
|
|
Touchscreen Type |
Projected Capacitive Touch (up to 10 points ) |
|
Surface Hardness |
7H |
|
Surface treatment |
Anti glare (chemical etching) |
|
Luminousness |
≥85% |
|
Touch controller IC |
EETI 80 |
|
Available touch drivers |
Windows, Linux, Android, Mac, etc |
|
Touch bonding |
Bonding Optional |
|
Touch optional |
Resistive touch, IR touch Optional |
|
External I/O Ports |
|
|
Video input |
1*IP67 HD-MI |
|
Touchscreen interface |
1*IP67 USB |
|
Power connector |
1*IP67 DC 9-36V |
|
Power Supply |
|
|
Working voltage |
DC 9-36V |
|
Power adapter |
AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
|
OSD |
|
|
Function Keys |
Touch 5 Keys: Power/Menu/Up/Down/Return |
|
Menu Functions |
Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
|
Support languages |
English, French, Spanish, Portuguese, German, Italian, Dutch, Swedish, Suomi, Polish, Czech, Russian, Korean, Japanese, |
|
Enclosure |
|
|
Material |
Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
|
Finish |
Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment |
|
Rear housing: powder coated |
|
|
Color |
Black, others optional |
|
Mounting |
VESA mount 75/100mm, Panel mount |
|
IP rating |
Full IP65/IP67 waterproof |
|
Cooling system |
Passive - Fanless |
|
Operating Environment |
|
|
Temperature Range |
Operating: -20 °C ~ 70°C (-4°F ~158°F) |
|
Storage: -30 °C~80°C (-22°F ~176°F) |
|
|
Relative humidity |
Up to 100% at all relevant temperatures, non-condensing |
|
Vibration |
GB/T 2423.10-2019 |
|
Shock |
GB2423.5 |
|
EMC |
Class B |
|
Accessories |
Power plug, Water proof Power supply, Waterproof HDMI cable |
|
Other |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE, FCC, RoHS |
Please find our detailed information as follows.

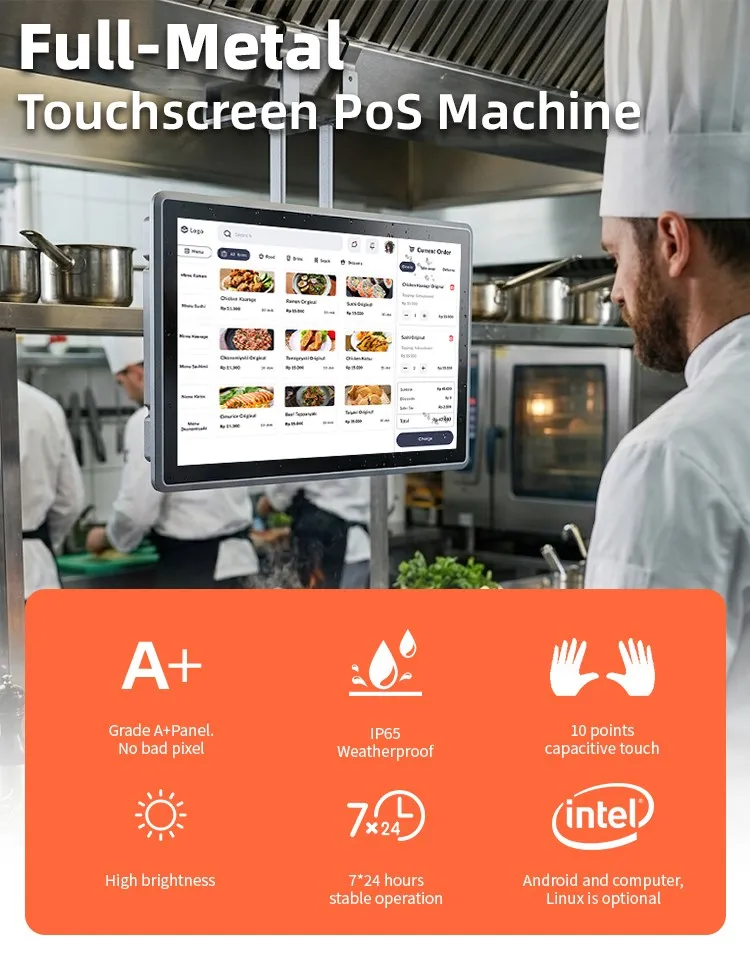

Elevate your business with our rugged Full-Metal PoS Machine. This IP65 weatherproof unit, perfect for kitchens, features a Grade A+ panel, high brightness, and a 10-point capacitive touch. Benefit from 24/7 stable operation and flexible OS support (Android/Linux).

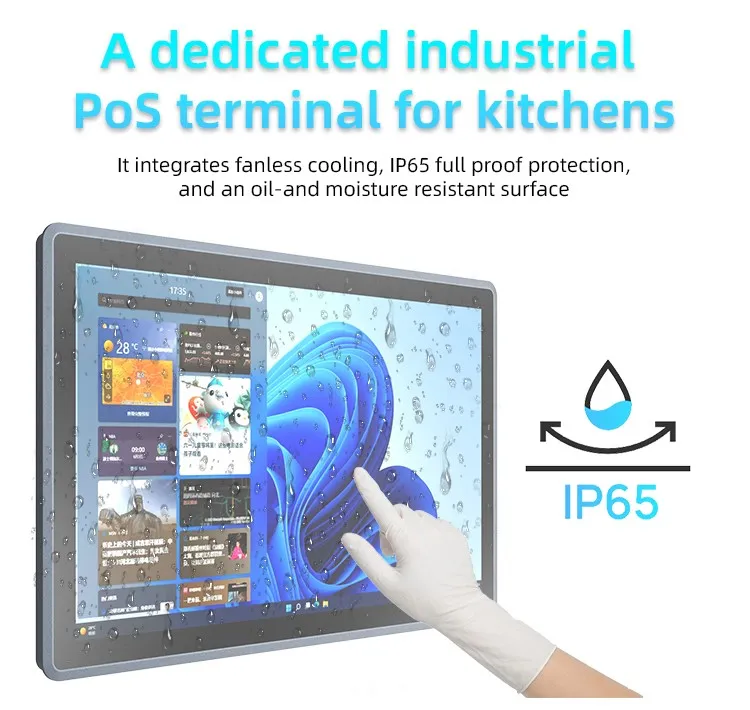

Upgrade your workflow with our dedicated industrial PoS terminal designed specifically for kitchens. It features innovative fanless cooling alongside a durable, oil- and moisture-resistant surface. With IP65 full-proof protection, this terminal effortlessly withstands water and grease, guaranteeing reliable performance.

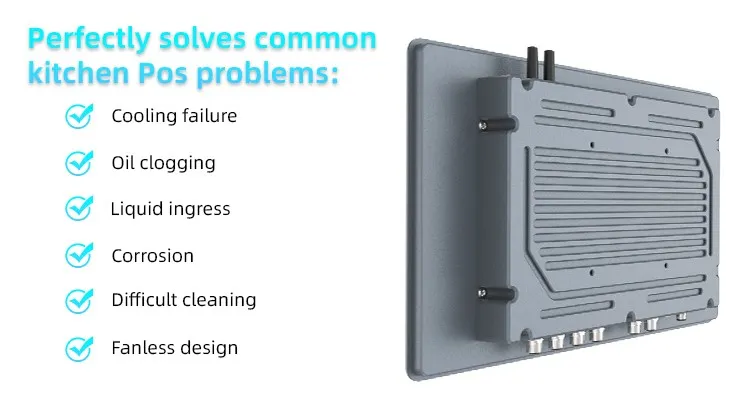

Say goodbye to common kitchen PoS problems! Our terminal features a robust fanless design that perfectly prevents cooling failure, oil clogging, liquid ingress, and corrosion. Easy to clean and incredibly durable, it ensures uninterrupted performance in the harshest restaurant environments, keeping your operations running smoothly.

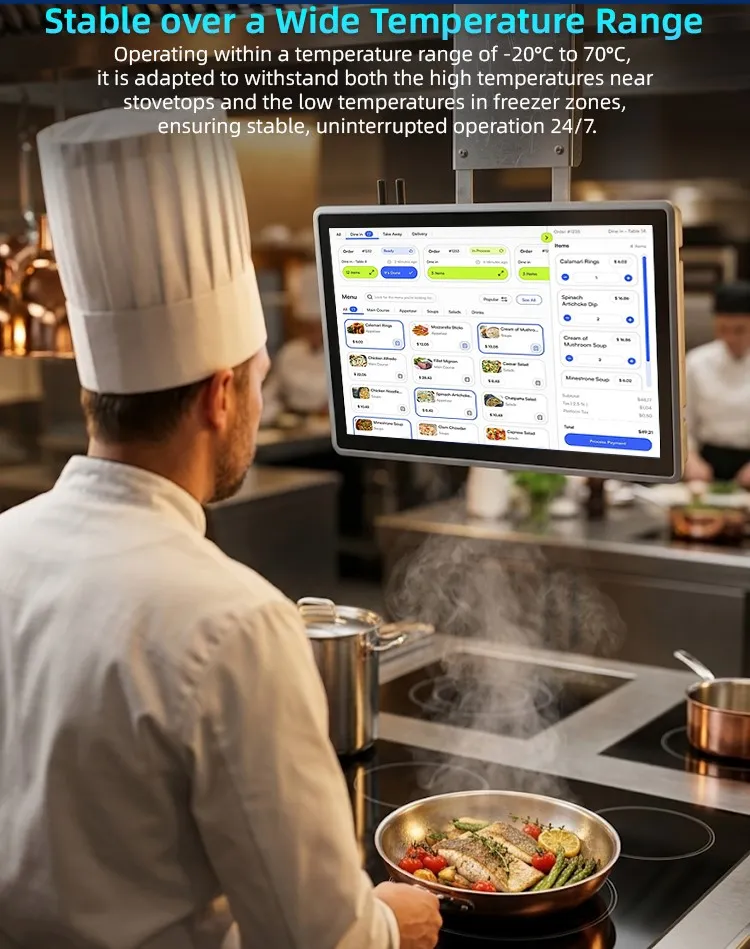

Experience reliable performance with our PoS terminal, designed for stability across a wide temperature range. Operating seamlessly from -20°C to 70°C, it easily withstands intense stovetop heat and freezing cold zones, ensuring continuous, uninterrupted 24/7 operation for your business.

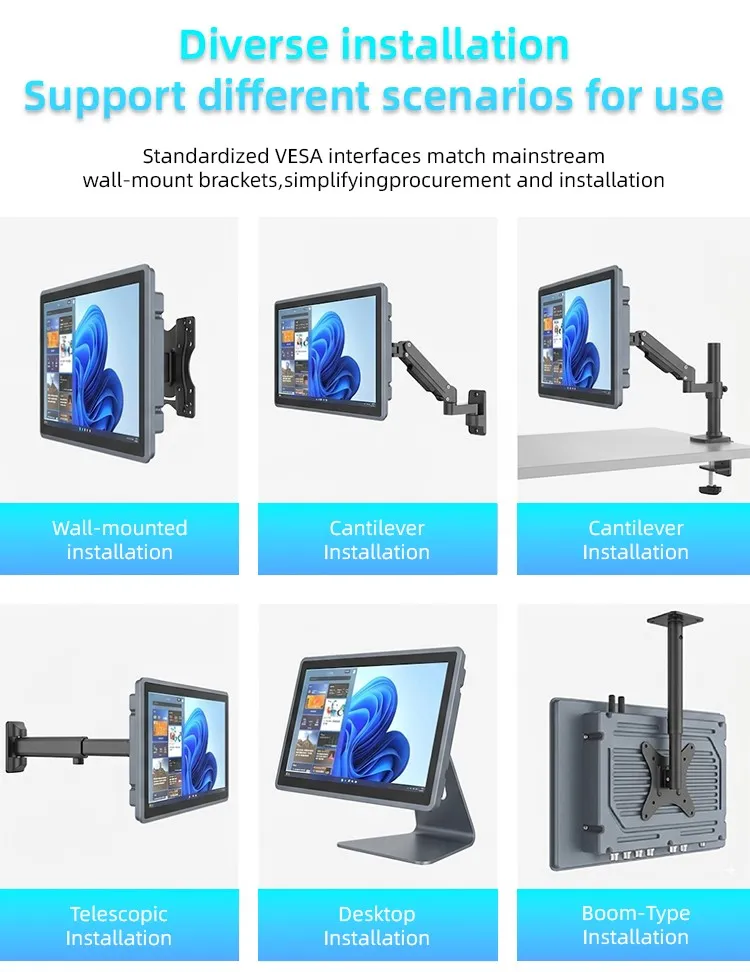

Maximize your workspace with our versatile PoS terminal. Featuring standardized VESA interfaces, it supports diverse installation options including wall-mounted, cantilever, telescopic, desktop, and boom-type setups. Easily adapt to any scenario, simplifying procurement and ensuring seamless integration into your business environment.

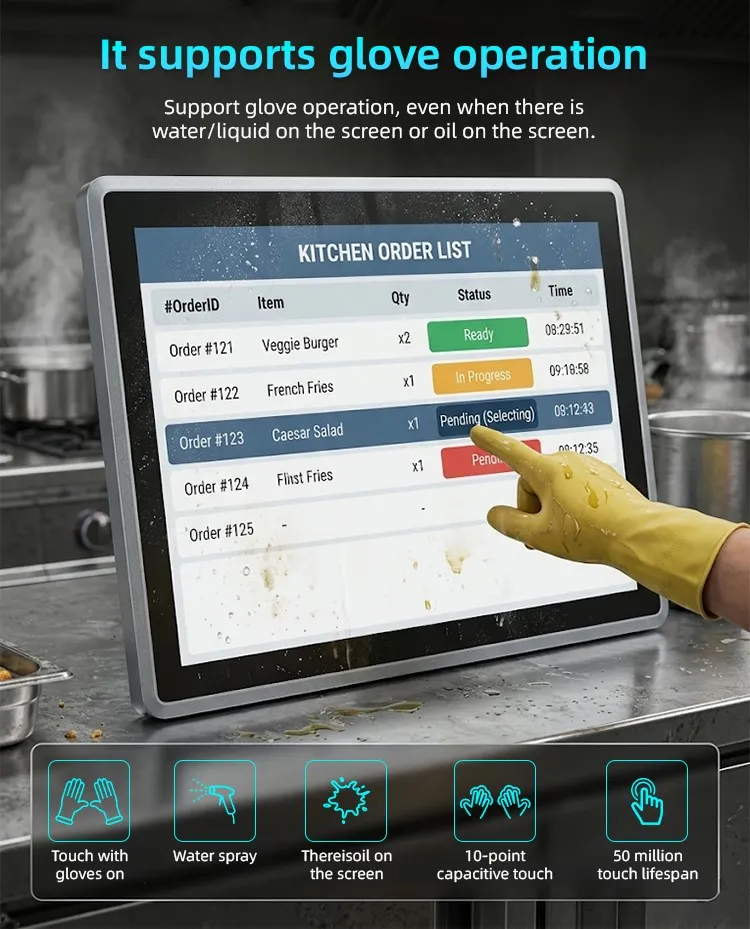

Boost kitchen efficiency with our highly responsive PoS touchscreen. It flawlessly supports glove operation, ensuring seamless use even when the screen is coated in water, liquids, or oil. Featuring a 10-point capacitive touch and a massive 50-million touch lifespan, it delivers unmatched durability and reliability for busy culinary environments.

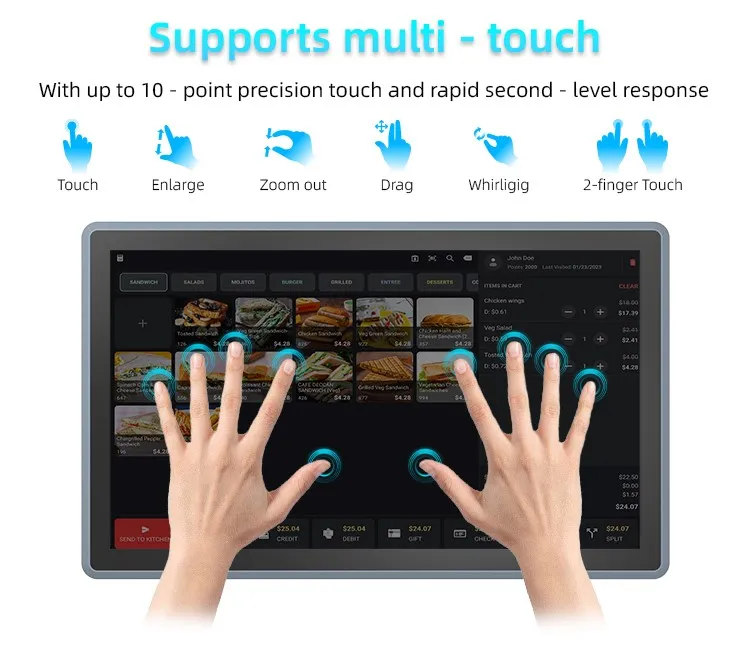

Enhance your operations with our advanced multi-touch PoS screen. Featuring up to 10-point precision touch, it delivers a rapid, second-level response for ultimate efficiency. It seamlessly supports intuitive gestures like zoom, drag, and rotate, providing a smooth and highly responsive user experience for any fast-paced environment.

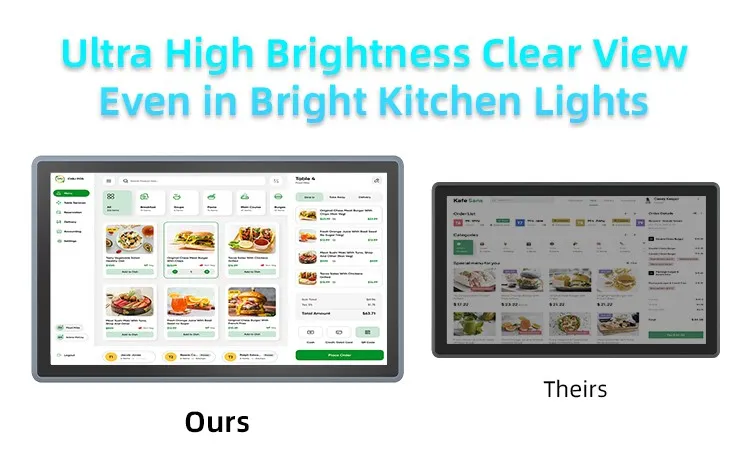

Ensure a clear view of your orders with our ultra-high brightness PoS screen. Designed to cut through the glare of intense kitchen lighting, our display remains vibrant and easy to read, unlike standard competitor screens. Never miss a detail, improving accuracy and speed in your busy restaurant!

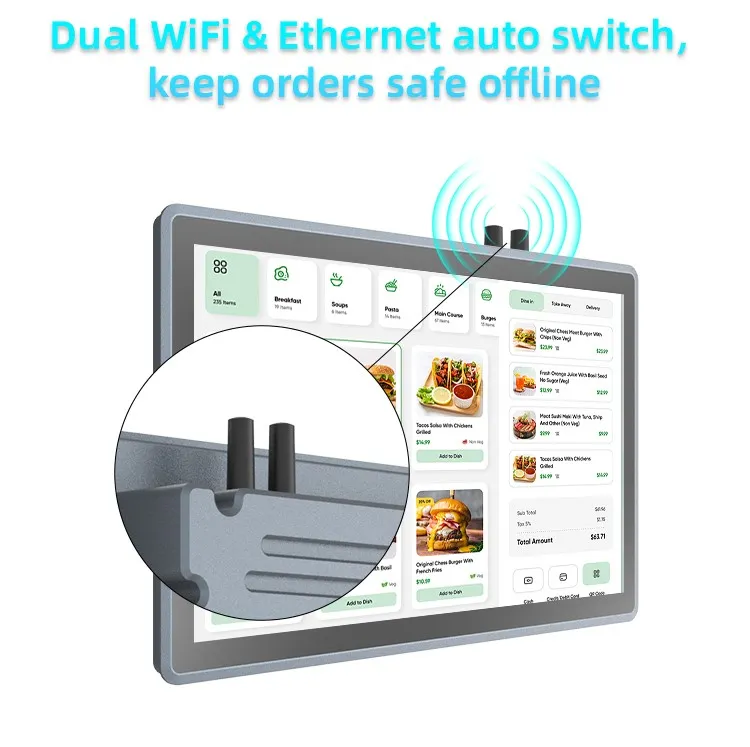

Ensure your business never misses a beat! Our reliable PoS terminal features Dual WiFi and Ethernet auto-switch capabilities for a seamless, unbreakable connection. It securely keeps your orders safe even when offline, ensuring zero data loss and uninterrupted service.

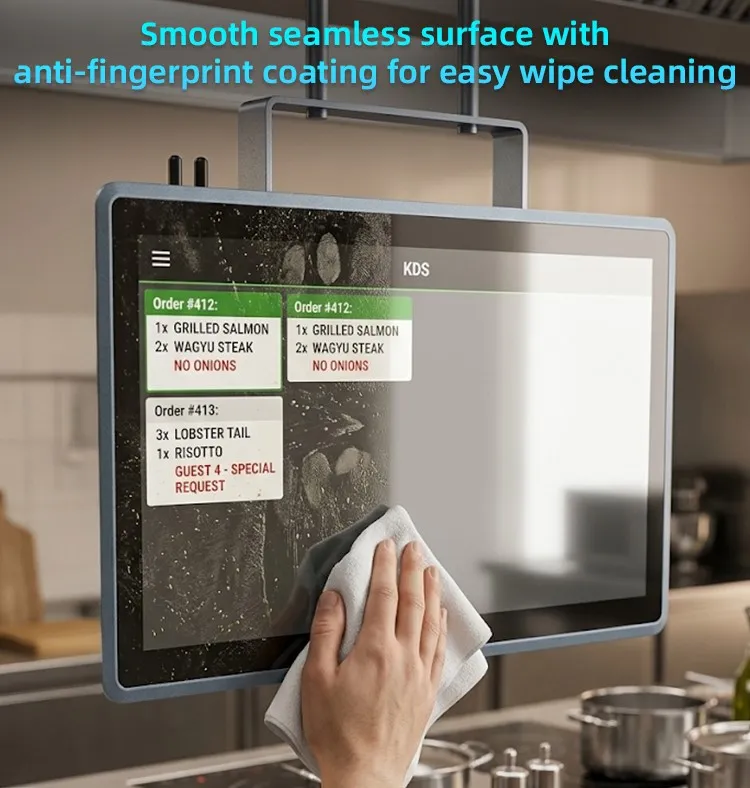

Maintain your kitchen's hygiene effortlessly! Our KDS features a smooth, seamless surface with an advanced anti-fingerprint coating. It effectively repels grease and smudges, allowing for quick and easy wipe cleaning. Keep your display crystal clear even during the busiest shifts.

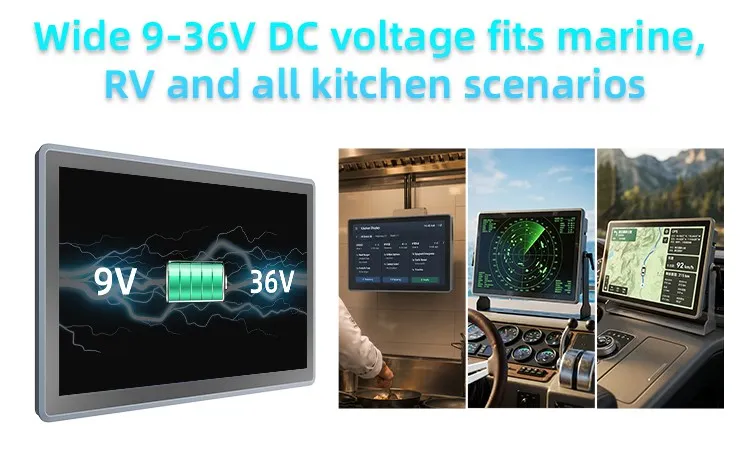

Power your operations anywhere with our versatile display! Featuring a wide 9-36V DC voltage input, it perfectly adapts to diverse power environments. Whether installed in marine settings, RVs, or demanding commercial kitchens, enjoy reliable and stable performance tailored to all your mobile and stationary needs.

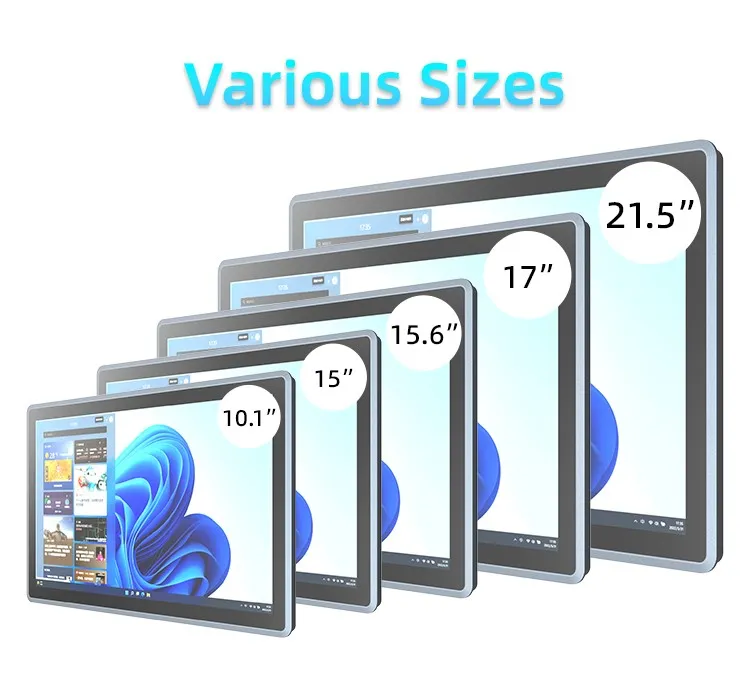

Find the perfect fit for your business with our versatile displays, available in various sizes from a compact 10.1" to an expansive 21.5" (including 15", 15.6", and 17"). Whether you need a space-saving terminal or a large overview screen, we have the ideal solution to meet your operational needs.
