Leading Industrial Panel PC Manufacturer & OEM/ODM Supplier





Founded in Guangzhou,
Guangzhou Jorarri Electronics Co., Ltd. is a premier innovator in rugged computing. We specialize in high-performance Industrial Panel PCs, featuring Fanless designs, IP65-rated waterproof protection, and sensitive Capacitive/Resistive Touch Screens. Our versatile product line covers sizes from 7 inch to 21 inch, engineered for Embedded installation and wall-mount applications in automation, IoT, and harsh industrial environments.




First 12345 Last

Why choose us


OEM/ODM
Our manufacturing capabilities enable us to maintain strict quality control while supporting both high-volume production and customized OEM/ODM projects. This integrated approach ensures that every product meets our rigorous standards for performance and durability.



Our Certifications
Guangzhou Jorarri Electronics Co., Ltd. has comprehensive international certifications, including BIS, ISO 9001, CE, FCC, RoHS, EMC Directive and LVD.



Quality Assurance
Standard one-year free warranty on all products.
Optional extended warranty plans available (3-5 years).



Our Service
Our technical experts offer professional guidance to help clients select the most suitable interactive panel and digital signage solutions based on specific application requirements.



  Basic parameters
Screen size/inch 13.3 15.6 18.5 21 23.6 27
Resolution 1920*1080
  Screen scale 16:9 (H:V)
  Brightness 250 cd/m² /1000 nits optional
  Contrast ratio 1900/2/19 0:01 1900/5/4 0:01 1200:01:00
  Display color 262K/16.7M
  Reaction time 16 (Typ.)(Tr+Td) ms
  Viewing angle 85/85/85/85 (Typ.)(CR≥10)
External dimensions 346.4*224.4*58.8mm 400.4*254.4*58.7mm 462.4*286.4*58.73mm 526.9*322.4*64mm 578.9*353.9*65.9mm 663.9*402.9*64.9mm
  Recommended opening size 327*201mm 377*227mm 443.8*263.8mm 509.3*300.8mm 560.1*331.1mm 644.1*379.1mm
  Touch type G+G capacitive
  Working environment 0℃-50℃(10～90%non-condensing)
  Storage environment -20℃-70 °C(10～90%non-condensing)
  Power Specifications DC：12V
  DC:9-36V(optional)
Material\ Craft Aluminum profile structure, aluminum profile back cover
  Color Black + Grey
  Host configuration
  Main board DB02 series industrial main board
  Processor Intel J6412, J4125, J1900, I3/I5/I7 optional
  Intel (I3/I5/I7) 10th optional
Platform Kaby Lake/Comet Lake
  Memory 4G/8G/16G/32G optional
  Hard disk capacity 128G/256G/512G optional
  Graphics card Integrated graphics card
  BIOS AMI UEFI BIOS
  Operating System Android/Windows/Linux
  Interface
DC power 1*DC IN 2PIN Phoenix terminal
  HDMI 1*HDMI OUT
  USB 2*USB3.0,2*USB2.0
  COM 2*DB9-RS232/RS485(signal optional)

4*DB9-RS232( optional)
  LAN 1*RJ45
  2*RJ45( optional)
Sim card moudle 4G moudle( optional)
5G moudle( optional)
WIFI 2.4G/5.0G/bluetooth( optional)
Audio 1 * Audio 2-in-1
(Audio output + microphone voice input)



Features of Industrial Panel PC



01


Industrial-Grade Rugged Reliability

IP65+ ingress protection, -20°C~60°C wide temp range, and anti-vibration construction enable non-stop stable performance in tough industrial settings.


02


High-Speed Processing Prowess

Powered by Intel processors, it delivers swift, dependable multitasking to support industrial automation, real-time monitoring, and control systems flawlessly.


03


Versatile Compatibility & Expandability

Tailored for industrial software/peripherals, with abundant I/O interfaces and upgradeable parts to flexibly meet varied operational requirements.

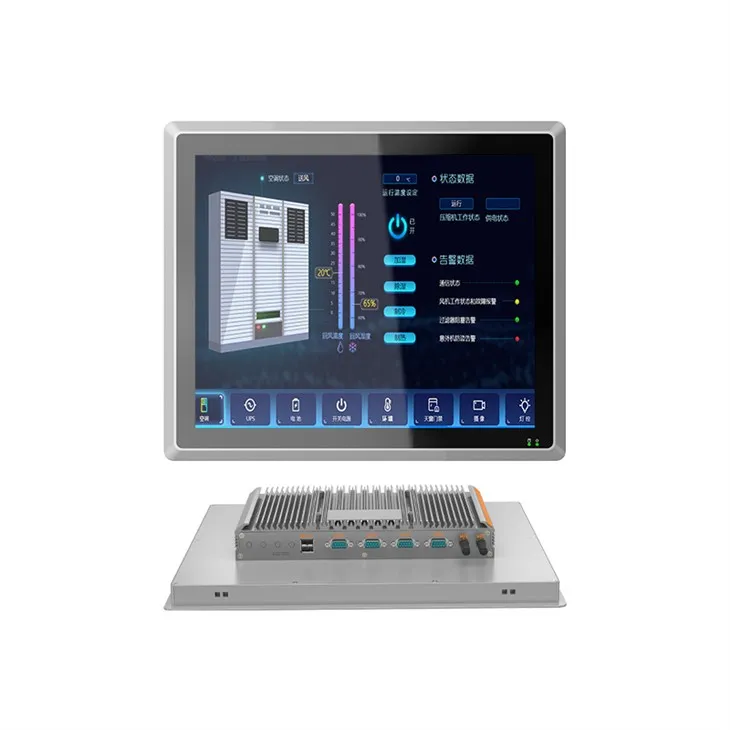

10.4 Inch Industrial Panel PC



Applications of Panel PC's




Smart Manufacturing
AI-powered panel PCs support real-time inspection, automated quality checks, and robotic guidance. By processing vision and sensor data locally, they improve accuracy and reduce delays on the production line.




Healthcare and Diagnostics
In medical environments, intelligent panel PCs enhance imaging, automate patient check-ins, and support continuous monitoring. On-device AI improves response times and increases reliability for diagnostic workflows.




Retail and Self-Service Terminals
These systems enable faster self-checkout, vision-assisted POS, and more personalized kiosk interactions. Local AI processing delivers quicker responses and a smoother customer experience.




Industrial Control and Operator Interfaces
AI-enhanced HMIs provide real-time alerts, detect anomalies, and offer smarter guidance to operators. This improves decision-making, reduces errors, and enhances overall operational safety.





Essential components Industrial Panel PC



Processors

Industrial-grade CPUs from leading manufacturers

01

Memory

Configurations from 8GB to 32GB RAM for demanding applications

02

Storage

Industrial-grade SSDs for enhanced reliability and performance

03

Connectivity

Comprehensive I/O options, including USB, serial, and network ports

04

Expansion

Flexible PCIe slots for future upgrades

05



Packing Details


We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package.

productcate-819-337



Delivery Details





We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc.
TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc.



FAQ



Q: What is an AI Industrial Panel PC?

A: An AI industrial panel PC is a rugged touchscreen computer with integrated AI acceleration, allowing it to perform real-time tasks such as machine vision, analytics, and automation directly at the edge.

Q: How is an AI-powered panel PC different from a traditional panel PC?

A: Traditional panel PCs focus on visualization and control, while AI-powered panel PCs include CPU, GPU, and NPU computing to analyze data, run AI models, and make decisions locally without depending on the cloud.

Q: What industries benefit from AI-powered panel PCs?

A: AI panel PCs are widely used in manufacturing, logistics, healthcare, retail, and industrial automation, where they support tasks like inspection, operator guidance, and predictive maintenance.

Q: What can AI-powered panel PCs do at the edge?

A: They can run real-time AI inference for defect detection, object recognition, anomaly detection, 3D visualization, and interactive HMI functions directly on the device.

Q: Do AI-powered panel PCs support machine vision?

A: Yes. They can process camera streams in real time for defect detection, barcode/OCR reading, robotic guidance, and inspection workflows, all without requiring cloud processing.

Q: How can i get the price?

A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q: Can I buy samples placing orders?

A: Yes.Please feel free to contact us.

Q: What is your lead time?

A: It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

Q: What is your payment term?

A: T/T,Western Union,Alipay,MoneyGram,and Paypal.This is negotiable.

Q: What is the shipping method?

A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
