Specifications

Touch Screen Industrial PC		SK-K10DR	SK-K12DR	SK-K15DR	SK-K17DR	SK-K19DR
Motherboard	Confirmuration	J6412, J4125, i3, i5, i7
Interface	WiFi,3/4G module	802.11b/g/n(optional), Support3g/4g(optional)
	HDMI	1*HDMI output
	USB	4*USB3.0
	Network	2*RJ45 with 1000 Base-T
	Com	com(RS485)*2
	Power supply	1*DC lock phoenix terminal, Support 9-36V
	Audio output	1*3.5mmaudio
	Other	8*GPIO(optional)
Display	Screen type	10.4 LCD	12.1 LCD	15 LCD	17 LCD	19 LCD
	Resolution	1024*768	1024*768	1024*768	1280*1024	1280*1024
	Size(W*H)	212.3*159.5mm	246*184.5mm	304.1*228 mm	338.92*271.34mm	377.32*302.06mm
	Contrast ratio	500:1	500:1	700:1	900:1	900:1
	Brightness	250cdm2	250cdm2	250cdm2	250cdm2	250cdm2
	Brightness Optional	1000cdm2	1000cdm2	1000cdm2	1000cdm2	1000cdm2
	Screen ratio	4:3	4:3	4:3	5:4	5:4
Structure	Front and back cover	Aluminum
	Craft	Glass frame paste, aluminum die casting
	Color	Black, grey
	Heat dissipasion	Fanless aluminum fin heat dissipation
	Panel indicator light	Power state, hard disk state
	Whole size	28122867.2mm	314.9253.767.2mm	37029468.2mm	40434169.2mm	44537572.2mm
Touch screen	Type	Projected capacitive touch screen
	Touch point	10 point touch
	Physical Resolution	4096x4096
	Response time	<5ms
	Accuracy	<2.5mm
	Transparency	≥90%
	Protection	The surface is coated with 1:1 PVC protective film
Others	Working environment	-20℃~70℃; Humidity: 10%~90%
	Storage environment	Temperature: -40℃~80℃; Humidity: 10%~90%
	Installation ways	Embedded,VESA100*100mm
	Power consumption	24W	25W	33W	34W	37W
Accessories	Manual	User Manual, certificate of qualification, warranty card
	Bracket	wall mounted bracket, embedded bracket, desktop bracket(optional)
	Adapter	Power adapter

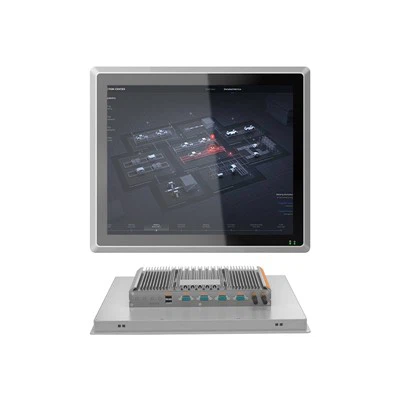

Industrial Panel PC: Robust Processing Solution for Industrial Environments

Industrial-Grade Rugged Reliability

IP65+ dust/waterproof rating, -20°C~60°C extreme temperature adaptability, and anti-vibration engineering guarantee 24/7 stable performance-minimizing downtime and maximizing productivity in harsh factory environments.

High-Efficiency Processing Heart

Powered by Intel CPUs, it delivers fast and reliable multitasking to seamlessly support industrial automation, monitoring, and control systems.

Adaptive Compatibility & Expansion

Optimized for industrial software and peripherals, featuring abundant I/O ports and upgradeable parts to flexibly meet diverse workflow requirements.

Supports Phoenix port power supply for consistent, trustworthy energy delivery-streamlining wiring setup and guaranteeing uninterrupted operation of the industrial panel PC, even in tough harsh environments.

Comes with a rich array of interfaces: DC (12V, 9-36V), HDMI, dual COM ports, 2x USB 3.0, dual LAN ports, and AUDIO. Facilitates smooth peripheral connection to meet diverse industrial application needs.

Withstands extreme temperatures spanning -20°C to 55°C, effortlessly enduring freezing cold and blistering heat. Ensures non-stop, reliable performance for industrial operations in unregulated factories or outdoor locations.

10-point capacitive touch featuring superior responsiveness enables accurate multi-touch gestures, swift taps, and seamless swipes-delivering user-friendly operation for high-productivity industrial workflows.

Features an IP65 waterproof and dustproof rating, efficiently safeguarding the industrial panel PC against water sprays, dust, and particles-guaranteeing consistent performance in severe factory settings or outdoor industrial sites.

Integrated with rugged ESD (anti-static) and EMI (anti-electromagnetic interference) protections. Maintains steady performance amid industrial electrical disruptions, preserving data integrity and system dependability.

Built with a full-aluminum framework and a high-performance rear cover cooling mechanism. Enables fast heat dispersion, sustaining uninterrupted stable operation for industrial uses in severe, challenging environments.

Employs a one-piece integrated full aluminum alloy structure-delivers outstanding structural stiffness, anti-corrosion capability, and durable sleek appearance, ideally tailored for long-term industrial application with a high-quality, rugged construction.
