Industrial Panel PC

Leading Industrial Panel PC Manufacturer & OEM/ODM Supplier

Founded in Guangzhou,
Guangzhou Jorarri Electronics Co., Ltd. is a premier innovator in rugged computing. We specialize in high-performance Industrial Panel PCs, featuring Fanless designs, IP65-rated waterproof protection, and sensitive Capacitive/Resistive Touch Screens. Our versatile product line covers sizes from 7 inch to 21 inch, engineered for Embedded installation and wall-mount applications in automation, IoT, and harsh industrial environments.

Pc Industrial Touch Screen
-13.3 15.6 18.5 21.5 23.6 27 inch-windows/Android/Linux-intel J6412/J4125/i3/i5/i7 processer-10 points touch-Fanless design-Capacitive Touch Panel (G+G)

view more
All in One Pc Touch Screen
-10.4 inch 12.1 inch 15 inch 17 inch 19 inch-windows/Android/Linux-intel J6412/J4125/i3/i5/i7 processer-10 points touch-Capacitive Touch Panel (G+G)

view more
7 Inch Panel Pc
-7/8/10.1/10.4/12.1/13.3/15/15.6/17/19/21.5 Inch. -intel J6412/J1900/i3/i5/i7 processer. -Windows/Android/Linux. -High brightness Optional. -10 points touch. -Capacitive Touch Panel.

view more
8 Inch Industrial Tablet Pc
-7/8/10.1/10.4/12.1/13.3/15/15.6/17/19/21.5 Inch. -intel J6412/J1900/i3/i5/i7 processer. -Windows/Android/Linux. -High brightness Optional. -10 points touch. -Capacitive Touch Panel.

view more
1000 Nits High Brightness Industrial Panel Pc
-12.1 15 15.6 17 19 21.5 Inch. -1000 nits high brightness for outdoor. -Windows/Android/Linux. -intel J6412/J4125/i3/i5/i7 processer. -10 points touch. -Capacitive Touch Panel (G+G).

view more
Panel Pc Android
-OEM&ODM supported. -7/8/10.1/10.4/12.1/13.3/15/15.6/17/19/21.5 Inch. -Android 11/12/13/14 system. -RK3562/RK3568/RK3576/RK3588. -6*COM，COM1/COM2,RS232/RS485. -4*USB3.0，2*USB2.0. -8*GPIO. -DC12V

view more
10.4 Inch Industrial Panel PC
-10.4 inch 12.1 inch 15 inch 17 inch 19 inch-windows/Android/Linux-intel J6412/J4125/i3/i5/i7 processer-10 points touch-Capacitive Touch Panel (G+G)

view more

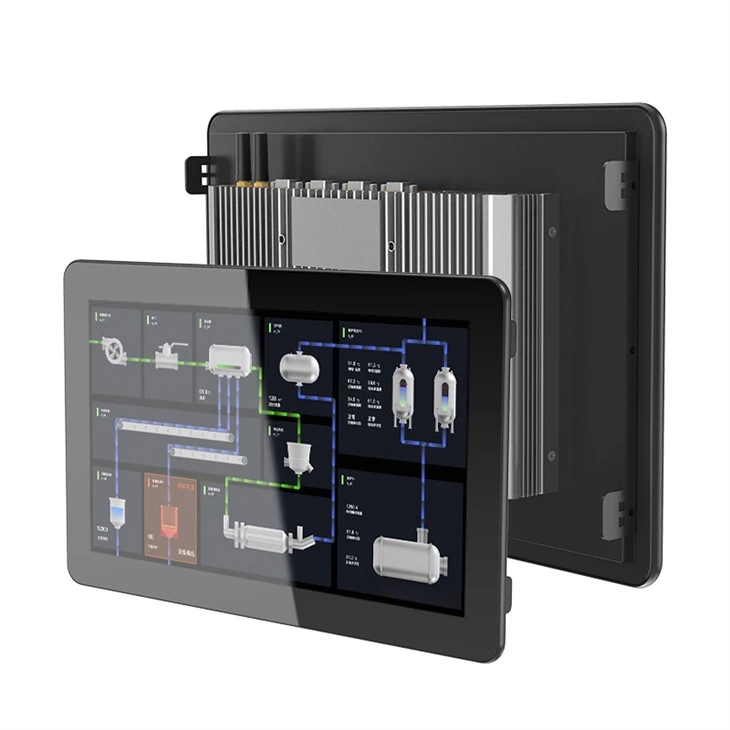

27 Inch Industrial Panel PC
-13.3 15.6 18.5 21.5 23.6 27 inch-windows/Android/Linux-intel J6412/J4125/i3/i5/i7 processer-10 points touch-Fanless design-Capacitive Touch Panel (G+G)

view more
21.5 Inch Industrial Panel PC Rugged
-13.3 15.6 18.5 21.5 23.6 27 inch-windows/Android/Linux-intel J6412/J4125/i3/i5/i7 processer-10 points touch-Fanless design-Capacitive Touch Panel (G+G)

view more
15.6 Industrial Panel Mounted Touch Screen PC
-13.3 15.6 18.5 21.5 23.6 27 inch-windows/Android/Linux-intel J6412/J4125/i3/i5/i7 processer-10 points touch-Fanless design-Capacitive Touch Panel (G+G)

view more
13.3 Inch Fanless Industrial Panel PC
-13.3 15.6 18.5 21.5 23.6 27 inch-windows/Android/Linux-intel J6412/J4125/i3/i5/i7 processer-10 points touch-Fanless design-Capacitive Touch Panel (G+G)

view more
19 Inch Industrial Touch Panel PC
-10.4 inch 12.1 inch 15 inch 17 inch 19 inch-windows/Android/Linux-intel J6412/J4125/i3/i5/i7 processer-10 points touch-Capacitive Touch Panel (G+G)

view more

First 12 3 4 5 6 Last

Why choose us

OEM/ODM
Our manufacturing capabilities enable us to maintain strict quality control while supporting both high-volume production and customized OEM/ODM projects. This integrated approach ensures that every product meets our rigorous standards for performance and durability.

Our Certifications
Guangzhou Jorarri Electronics Co., Ltd. has comprehensive international certifications, including BIS, ISO 9001, CE, FCC, RoHS, EMC Directive and LVD.

Quality Assurance
Standard one-year free warranty on all products.
Optional extended warranty plans available (3-5 years).

Our Service
Our technical experts offer professional guidance to help clients select the most suitable industrial panel pc, interactive panel and digital signage solutions based on specific application requirements.

Touch Screen Industrial PC		SK-K10DR	SK-K12DR	SK-K15DR	SK-K17DR	SK-K19DR
Motherboard	Confirmuration	J6412, J4125, i3, i5, i7
Interface	WiFi,3/4G module	802.11b/g/n(optional), Support3g/4g(optional)
	HDMI	1*HDMI output
	USB	4*USB3.0
	Network	2*RJ45 with 1000 Base-T
	Com	com(RS485)*2
	Power supply	1*DC lock phoenix terminal, Support 9-36V
	Audio output	1*3.5mmaudio
	Other	8*GPIO(optional)
Display	Screen type	10.4 LCD	12.1 LCD	15 LCD	17 LCD	19 LCD
	Resolution	1024*768	1024*768	1024*768	1280*1024	1280*1024
	Size(W*H)	212.3*159.5mm	246*184.5mm	304.1*228 mm	338.92*271.34mm	377.32*302.06mm
	Contrast ratio	500:1	500:1	700:1	900:1	900:1
	Brightness	250cdm2	250cdm2	250cdm2	250cdm2	250cdm2
	Brightness Optional	1000cdm2	1000cdm2	1000cdm2	1000cdm2	1000cdm2
	Screen ratio	4:3	4:3	4:3	5:4	5:4
Structure	Front and back cover	Aluminum
	Craft	Glass frame paste, aluminum die casting
	Color	Black, grey
	Heat dissipasion	Fanless aluminum fin heat dissipation
	Panel indicator light	Power state, hard disk state
	Whole size	28122867.2mm	314.9253.767.2mm	37029468.2mm	40434169.2mm	44537572.2mm
Touch screen	Type	Projected capacitive touch screen
	Touch point	10 point touch
	Physical Resolution	4096x4096
	Response time	<5ms
	Accuracy	<2.5mm
	Transparency	≥90%
	Protection	The surface is coated with 1:1 PVC protective film
Others	Working environment	-20℃~70℃; Humidity: 10%~90%
	Storage environment	Temperature: -40℃~80℃; Humidity: 10%~90%
	Installation ways	Embedded,VESA100*100mm
	Power consumption	24W	25W	33W	34W	37W
Accessories	Manual	User Manual, certificate of qualification, warranty card
	Bracket	Wall mounted bracket, embedded bracket, desktop bracket(optional)
	Adapter	Power adapter

Advantages of Industrial Panel PC

They can be used anywhere

As they are a simple panel, they only require a place to mount them (e.g. a VESA mount).

They are durable and robust

They are specifically designed for industrial environments that a traditional PC could not survive, as they are fanless and built with a high level of IP protection.

Practical and compatible

Thanks to their design (durability, size, ports and touchscreen) they fit into any industrial environment where a PC is needed.

Future-oriented

Thanks to computers, industry is becoming more and more efficient. An industry that uses computers is open to new technologies to improve usability, product quality and efficiency.

Application of Industrial Panel PC

Production industry

In manufacturing plants, they are used to control machines and processes.

Logistics and warehousing

They help manage inventory and optimize logistics processes.

Medical devices

In medicine, they are used in imaging procedures and patient monitoring systems.

Food industry

In food production, they ensure compliance with quality standards and tracking of production processes.

Energy and utilities

They are used in monitoring and control systems to ensure the smooth operation of energy plants.

Choose the Right Industrial Panel PC

☆Environmental Conditions (IP rating, temperature range)

☆Processing Power (CPU, RAM, storage)

☆Display Requirements (size, resolution, sunlight readability)

☆Connectivity Options (serial ports, GPIO, wireless modules)

☆Certifications (CE, UL, ATEX for hazardous areas)

Packing Details

We will packing by professional export packing,safety against breakage, finally into the wooden cases/ carton/pallet or customized package.

productcate-819-337

Delivery Details

We can deliver by SEA,air,rail transportation,the China-Europe Railway Express etc.
TNT, DHL,UPS, FEDEX, EMS，S.F EXPRESS etc.

FAQ

Q: What are Industrial Panel PCs used for?

A: Industrial Panel PCs are primarily used for data acquisition and process control. Their specific functions vary across industries, tailored to meet the unique demands of each sector.

Q: What are the protection standards?

A: Look for Ingress Protection (IP) ratings when selecting a Panel PC. These ratings indicate the device's effectiveness in sealing out dust, liquids, and other external materials, ensuring longevity and reliability in harsh environments.

Q: What types of mounting are available?

A: Common mounting options for Industrial Panel PCs include VESA mounts (stand, arm, or base mounts), bezel frames for front installation, and rack mounts for servers. Choose the mounting type that best fits your installation needs.

Q: Which touchscreens are best for Panel PCs?

A: The choice of touchscreen technology depends on the environment and application. Surface Capacitive Touchscreens, common in consumer electronics, require direct skin contact and are not suitable for gloved hands. Resistive Touchscreens, which respond to pressure, can be used with gloves, making them ideal for healthcare, hospitality, and heavy equipment industries.

Q: How can i get the price?

A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q: Can I buy samples placing orders?

A: Yes.Please feel free to contact us.

Q: What is your lead time?

A: It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

Q: What is your payment term?

A: T/T,Western Union,Alipay,MoneyGram,and Paypal.This is negotiable.

Q: What is the shipping method?

A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

We are one of the most reliable industrial panel PC manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to wholesale high-grade industrial panel PC at competitive price from our factory.
