Specifications

Model	YPC-070AZ
Size Optional	7/8/10.1/10.4/12.1/13.3/15/15.6/17/19/21.5 Inch
system	CPU	Intel® Celeron J1900	Intel® Celeron J6412	Intel® Core 7th Gen i3/i5/i7
	Memory	1 SO-DIMM memory slot, supporting up to 8GB	1 SO-DIMM memory slot, supports up to 16GB	1 SO-DIMM memory slot, supports up to 16 GB
	storage	1*MSATA (SATA protocol)	1 M.2 2280 M-Key slot (supports SSDs with SATA and PCIe signals)
	Network (LAN)	2*RTL8111H Gigabit Ethernet ports, supporting Wake-on-LAN/PXE
	I/O interface	1* Power switch	1* Power switch	1* Power switch
		1*DC 12V	1*DC 12V	1*DC 12V
		1*HDMI OUT	1*HDMI OUT	1*HDMI OUT
		3 *USB2.0	2 USB 2.0 ports	2 USB 2.0 ports
		1 *USB3.0	2*USB3.0	2*USB3.0
		1* Audio and video combined	1* Audio and video combined	1* Audio and video combined
		2*LAN	2*LAN	2*LAN
		6*COM 232 (COM 2 can be 485 , COM1 can be TTL )	6*COM 232 (COM2 optional 485)	6*COM 232 (COM2 optional 485)

	Extend	1*Mini-PCIe , supports WIFI+BT/4G (optional)	1*M.2 KeyA supports WiFi + BT (optional)	1*Mini-PCIe , supports WIFI+BT/4G ( optional)
		1*SATA2.0	1*M.2 KeyB supports 4G/5G (optional )	1*SATA3.0
			1*SATA3.0	1*NANO SIM card
	Watchdog	Supports software watchdog
operating system	operating system	Supports Windows /Linux systems
LCD screen	type	7-inch industrial-grade LCD monitor (LED backlight)
	resolution	1024 * 600
	Viewing angle	85/85/85/85 (Typ.)(CR≥10)
	brightness	300 nits
	Contrast	500:01:00
	Backlight lifespan	30,000 hr (min.)
touchscreen	type	Projected capacitive touch, 10-point touch
	Control method	USB interface
	Light transmittance	More than 80%
environment	Operating temperature	-10℃～60℃
	Storage temperature	-20℃～70℃
	relative humidity	5%-95% relative humidity, non-condensing
body	Weight (net weight of the bare unit)	1.16Kg
body	Install	Supports VESA installation/embedded panel installation

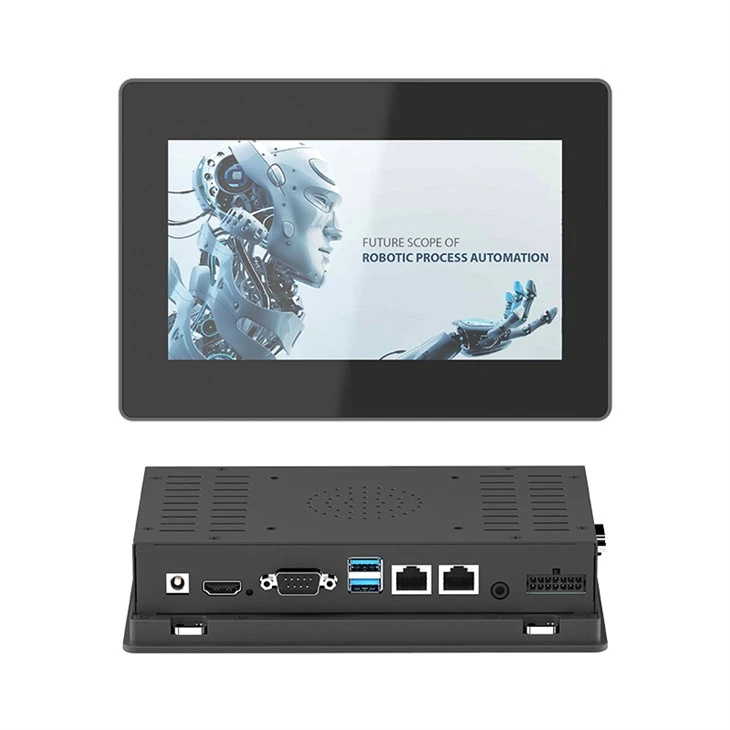

7 inch Industrial Panel PC: Small-screen industrial solutions

IP65 Front Panel Protection

Boasts IP65-rated front enclosure, shielding against dust, water splashes, and harsh industrial debris. Ideal for factory floors, warehouses, and outdoor kiosks with zero compromise on performance.

Optional Intel J6412 Motherboard

Comes with optional Intel J6412 quad-core motherboard, delivering robust processing power for multitasking industrial workflows. Ensures smooth operation of data-intensive applications and control systems.

Wide Temperature & Multi-Touch Compatibility

Supports -20°C to 60°C wide operating temperature range, paired with 10-point capacitive touch. Ensures stable, responsive operation in extreme cold/hot industrial environments.

This 7-inch industrial panel PC packs rich I/O: DC 12V, HDMI, USB3.0, dual LAN, and COM ports. Its robust design suits diverse industrial setups with flexible connectivity.

Powered by Intel Celeron J6412 (up to 2.60GHz), this panel PC delivers reliable performance for industrial tasks. Its compatible CPU ensures smooth operation in demanding environments.

Boasting IP65 waterproof and dropproof ratings, this 7-inch panel PC withstands harsh industrial conditions. It stays functional even in wet or rugged workplaces.

This industrial panel PC features a fanless semi-closed design: dustproof, silent, and equipped with an aluminum alloy heat-conduction system. It handles -20°C to 70°C (90°C non-condensing) temperatures for tough environments.

Equipped with 10-point capacitive touch, this 7-inch panel PC enables smooth, multi-finger interactions. Ideal for intuitive operation in industrial automation or robotic control scenarios.

Available in 7" to 21.5"inch, this industrial panel PC offers flexible display options. Its consistent rugged design adapts to various industrial setup scales.

This industrial panel PC supports flexible installation: cabinet (embedded/shell-mounted) and wall-mounted setups. Its adaptable mounting options fit diverse industrial cabinet/wall environments easily.

This industrial panel PC shines across smart medical (clinical workflows),medical beauty (device control),factory automation (process monitoring),SOP workstations (task guidance),intelligent manufacturing (production management),food industry (operational control) - and beyond: it adapts to logistics warehousing (inventory tracking), automotive assembly (line supervision), or agricultural IoT (environmental monitoring) too. Its rugged versatility fits nearly any industrial/commercial scenario.
