Specifications
|
Basic parameters |
|||||||
|
Screen size/inch |
13.3 |
15.6 |
18.5 |
21 |
23.6 |
27 |
|
|
Resolution |
1920*1080 |
||||||
|
Screen scale |
16:9 (H:V) |
||||||
|
Brightness |
250 cd/m² /1000 nits optional |
||||||
|
Contrast ratio |
1200 : 1 |
3000 : 1 |
1200 : 1 |
||||
|
Display color |
262K/16.7M |
||||||
|
Reaction time |
16 (Typ.)(Tr+Td) ms |
||||||
|
Viewing angle |
85/85/85/85 (Typ.)(CR≥10) |
||||||
|
External dimensions |
346.4*224.4*58.8mm |
400.4*254.4*58.7mm |
462.4*286.4*58.73mm |
526.9*322.4*64mm |
578.9*353.9*65.9mm |
663.9*402.9*64.9mm |
|
|
Recommended opening size |
327*201mm |
377*227mm |
443.8*263.8mm |
509.3*300.8mm |
560.1*331.1mm |
644.1*379.1mm |
|
|
Touch type |
G+G capacitive |
||||||
|
Working environment |
0℃-50℃(10～90%non-condensing) |
||||||
|
Storage environment |
-20℃-70 °C(10～90%non-condensing) |
||||||
|
Power Specifications |
DC：12V |
||||||
|
DC:9-36V(optional) |
|||||||
|
Material\ Craft |
Aluminum profile structure, aluminum profile back cover |
||||||
|
Color |
Black + Grey |
||||||
|
Host configuration |
|||||||
|
Main board |
DB02 series industrial main board |
||||||
|
Processor |
Intel J6412, J4125, J1900, I3/I5/I7 optional |
||||||
|
Intel (I3/I5/I7) 10th optional |
|||||||
|
Platform |
Kaby Lake/Comet Lake |
||||||
|
Memory |
4G/8G/16G/32G optional |
||||||
|
Hard disk capacity |
128G/256G/512G optional |
||||||
|
Graphics card |
Integrated graphics card |
||||||
|
BIOS |
AMI UEFI BIOS |
||||||
|
Operating System |
Android/Windows/Linux |
||||||
|
Interface |
|||||||
|
DC power |
1*DC IN 2PIN Phoenix terminal |
||||||
|
HDMI |
1*HDMI OUT |
||||||
|
USB |
2*USB3.0,2*USB2.0 |
||||||
|
COM |
2*DB9-RS232/RS485(signal optional) |
||||||
|
4*DB9-RS232( optional) |
|||||||
|
LAN |
1*RJ45 |
||||||
|
2*RJ45( optional) |
|||||||
|
Sim card moudle |
4G moudle( optional) |
||||||
|
5G moudle( optional) |
|||||||
|
WIFI |
2.4G/5.0G/bluetooth( optional) |
||||||
|
Audio |
1 * Audio 2-in-1 |
||||||
|
(Audio output + microphone voice input) |
|||||||

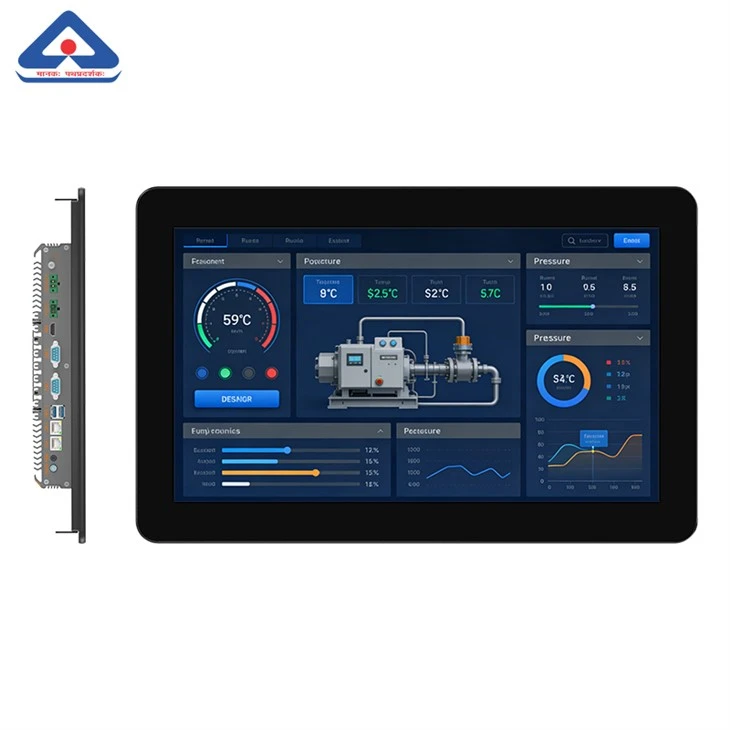

Industrial Panel PC: Fanless Sturdy Computing Solution for Harsh Industrial Environments
01
Industrial-Grade Rugged Durability
IP65+ protection, -20°C~55°C broad temperature tolerance, and anti-vibration design guarantee 24/7 stable operation in harsh factory environments.
02
High-Performance Processing Core
Equipped with Intel CPUs, it provides fast, reliable multitasking to seamlessly support industrial automation, monitoring, and control systems.
03
Flexible Compatibility & Expandability
Optimized for industrial software and peripherals, featuring rich I/O interfaces and upgradeable components to flexibly adapt to diverse workflow needs.
Delivers Phoenix port power supply support for consistent, trustworthy energy transfer-streamlining wiring setup and safeguarding uninterrupted operation of the industrial panel PC, even in harsh extreme environments.
Comes fitted with a flexible range of interfaces: DC (12V, 9-36V), HDMI, dual COM ports, 2× USB 3.0, dual LAN ports, and AUDIO. Tailored interface solutions are offered to enable smooth peripheral connection, flexibly meeting the demands of various industrial application scenarios.
Withstands extreme temperatures ranging from -20°C to 55°C, effortlessly enduring freezing cold and scorching heat. Customizable interface options are offered, securing non-stop, reliable performance for industrial operations in unregulated factories or outdoor locations.
10-point capacitive touch with exceptional responsiveness allows for accurate multi-touch gestures, agile taps, and fluid swipes-delivering user-friendly operation to boost efficiency in industrial workflows.
Features an IP65 waterproof and dustproof rating, effectively warding off water splashes, dust, and impurities-securing consistent performance for industrial panel PCs in harsh factory settings or outdoor industrial sites.
Comes fitted with rugged ESD (anti-static) and EMI (anti-electromagnetic interference) shielding. Maintains stable operation amid industrial electrical disruptions, protecting data precision and system dependability.
Built with a full-aluminum shell and a high-performance rear cover cooling module. Enables quick heat dispersion, sustaining uninterrupted stable operation for industrial uses in severe, challenging environments.
Utilizes a one-piece integrated full aluminum alloy shell-delivers outstanding structural stiffness, anti-corrosion durability, and enduring sleek finish, ideally suited for long-term industrial application with a high-end, rugged construction.
Optional customizable OS options: Android, Windows 10/11, or Linux. Supported features include no ROOT requirement, automatic application launch, logo personalization, and additional capabilities.
Industrial Panel PC offers three versatile mounting options: wall-mounted, floor-standing, and VESA hole mounting. It seamlessly adapts to diverse industrial scenarios, facilitating simple installation and effective space utilization.
Delivers Phoenix port power supply support for consistent, trustworthy energy transfer-streamlining wiring setup and safeguarding uninterrupted operation of the industrial panel PC, even in harsh extreme environments.
Comes fitted with a flexible range of interfaces: DC (12V, 9-36V), HDMI, dual COM ports, 2× USB 3.0, dual LAN ports, and AUDIO. Tailored interface solutions are offered to enable smooth peripheral connection, flexibly meeting the demands of various industrial application scenarios.
Withstands extreme temperatures ranging from -20°C to 55°C, effortlessly enduring freezing cold and scorching heat. Customizable interface options are offered, securing non-stop, reliable performance for industrial operations in unregulated factories or outdoor locations.
10-point capacitive touch with exceptional responsiveness allows for accurate multi-touch gestures, agile taps, and fluid swipes-delivering user-friendly operation to boost efficiency in industrial workflows.
Features an IP65 waterproof and dustproof rating, effectively warding off water splashes, dust, and impurities-securing consistent performance for industrial panel PCs in harsh factory settings or outdoor industrial sites.
Comes fitted with rugged ESD (anti-static) and EMI (anti-electromagnetic interference) shielding. Maintains stable operation amid industrial electrical disruptions, protecting data precision and system dependability.
