Specifications
|
Basic parameters |
CPU |
Intel Core i5 1235U processor / 10 cores / 12 threads / Single-core turbo frequency 4.40 GHz / All-core turbo frequency 2.50 GHz |
|
|
graphics card |
Integrated Intel Iris Xe Graphics G7 (80EU) graphics card |
||
|
Memory |
Standard: 16GB |
Optional features:MAX/64GB |
|
|
storage |
Standard: 256GB |
Optional features:MAX/2TB |
|
|
Display screen |
Standard configuration: 15.6-inch FHD high-definition screen/1200x1920/1000 nits |
||
|
touchscreen |
Standard configuration: 15.6-inch capacitive screen / 7H hardness |
||
|
Camera |
Standard: 5.0MP |
Autofocus |
|
|
microphone |
Standard configuration: Analog microphone *1 |
Sensitivity: -32±2d, Output impedance 2.2kΩ x 1 |
|
|
trumpet |
Standard configuration: Waterproof speaker *2 |
8Ω/1.5W |
|
|
I/O interface |
Standard configuration: AUDIO *1 |
Φ3.5mm standard headphone jack |
|
|
Standard configuration: Micro HDMI *1 |
4K/60Hz |
||
|
Standard configuration: USB *1 |
USB 3.0 |
||
|
Standard configuration: Type-C *1 |
USB 2.0/Data Only |
||
|
Standard configuration: RJ45 *1 |
gigabit |
||
|
Standard configuration: USB *1 |
USB 2.0 |
||
|
Standard configuration: RS232 *1 |
Optional: RS485 |
||
|
Standard configuration: DC_IN *1 |
19V/3.42A |
||
|
Standard configuration: TF card slot *1 |
Supported: MAX-256GB |
||
|
Standard configuration: SIM card slot *1 |
Supported by: China Telecom, China Mobile, and China Unicom |
||
|
Aviation Interface |
Optional: RS232 *2 |
||
|
Optional: RJ45 *1 |
|||
|
Optional: USB 2.0 *2 |
|||
|
Module parameters |
WiFi/Bluetooth |
Standard features: Wi-Fi 6/Bluetooth 5.0 |
|
|
communication |
Optional features: |
Supports: 4G Southeast Asia version / 4G Global version / 5G module |
|
|
GNSS |
Optional features: |
Supports: BeiDou module/GLONASS module or other combined modules |
|
|
NFC |
Optional features: |
Supports: 14443A/14443B/15693 protocols and customized ID card modules |
|
|
fingerprint |
Optional features: |
Supports: Standard fingerprint modules / Public Security fingerprint modules and other customized modules |
|
|
RFID |
Optional features: |
Supports: UHF modules based on the ISO18000-6C protocol standard |
|
|
Battery performance |
capacity |
Standard configuration: Lithium battery / 7.6V / 11200mAh / Non-removable |
Upgradeable to detachable |
|
Battery life |
Standard: 5 hours |
Default volume 50%, brightness 200 lumens, playing 1080P local video. |
|
|
Overall parameters |
Overall material |
CNC process for magnesium-aluminum alloys |
|
|
Overall color |
Default: Black |
Supported: Other colors |
|
|
bare machine size |
399(W)*282(D)*43(H)mm |
||
|
bare weight |
3500g |
(The weight may vary depending on the configuration and accessories purchased. Please contact the seller for final confirmation if |
|
|
Total weight |
4500g |
||
|
reliability |
adapter |
AC100V~240V/Output DC19V/3.42A |
|
|
Operating temperature |
-15°C ~ 50°C |
||
|
Storage temperature |
-20°C ~ 60°C |
||
|
humidity |
95% non-condensing |
||
|
Protective characteristics |
IP65 |
||
|
Fall height |
0.8-meter drop resistant composite wood flooring |
||
|
Certification |
RoHS certification, UN.38 certification, safety test report, EMC test report |
||
|
software |
operating system |
Pre-installed: Windows 10/Windows 11 |
|

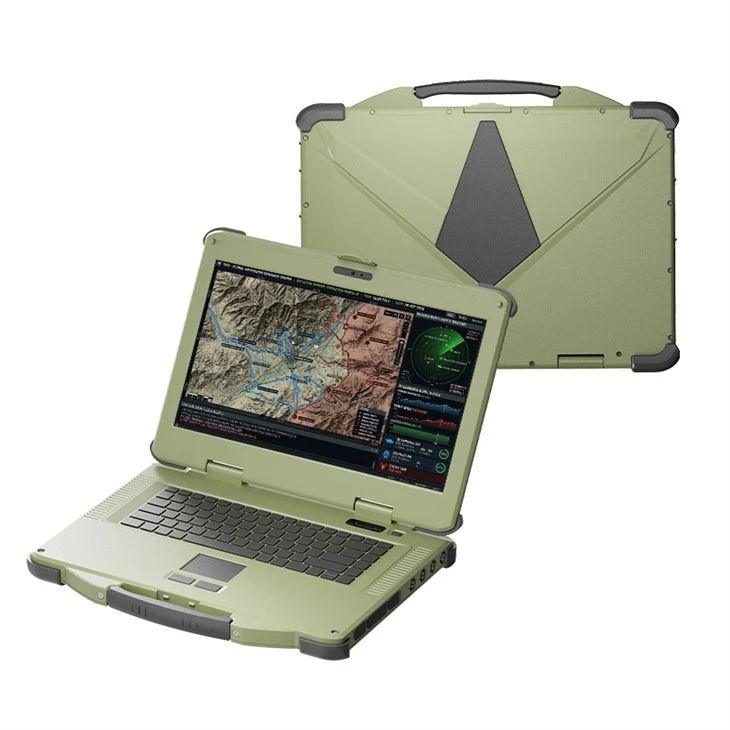

Rugged Laptop: Durable Device for Extreme Industrial/Outdoor Use

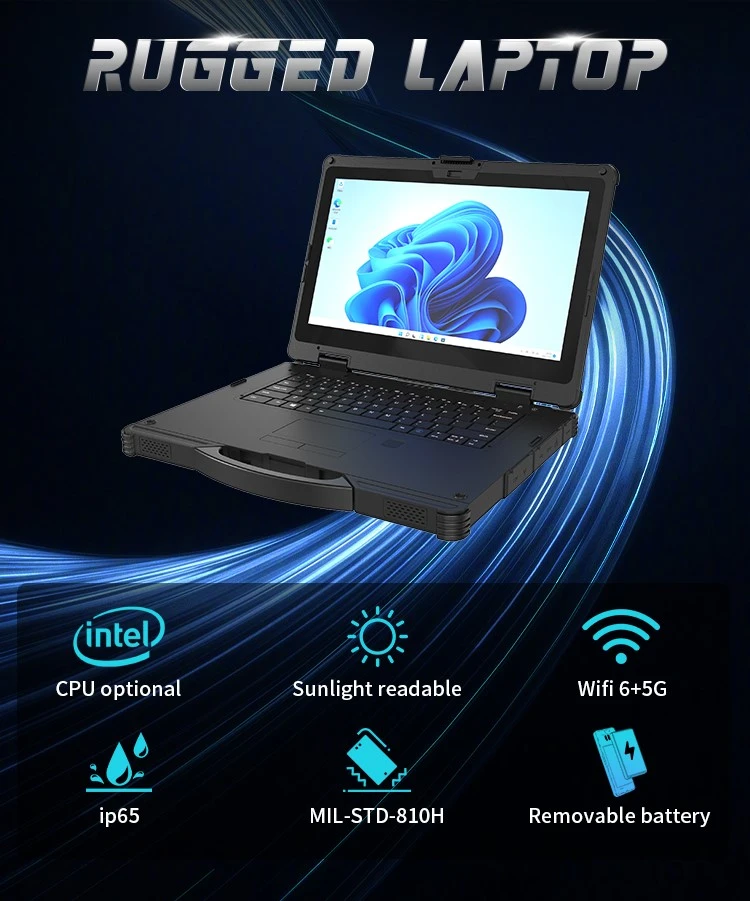

Experience ultimate durability with this Rugged Laptop. Powered by an Intel i5 12th MAX processor, it features a sunlight-readable display, IP65 protection, and MIL-STD-810H certification. Stay connected anywhere with WiFi 6 and 5G, and power through your shift with a convenient removable battery. Perfect for extreme outdoor environments.

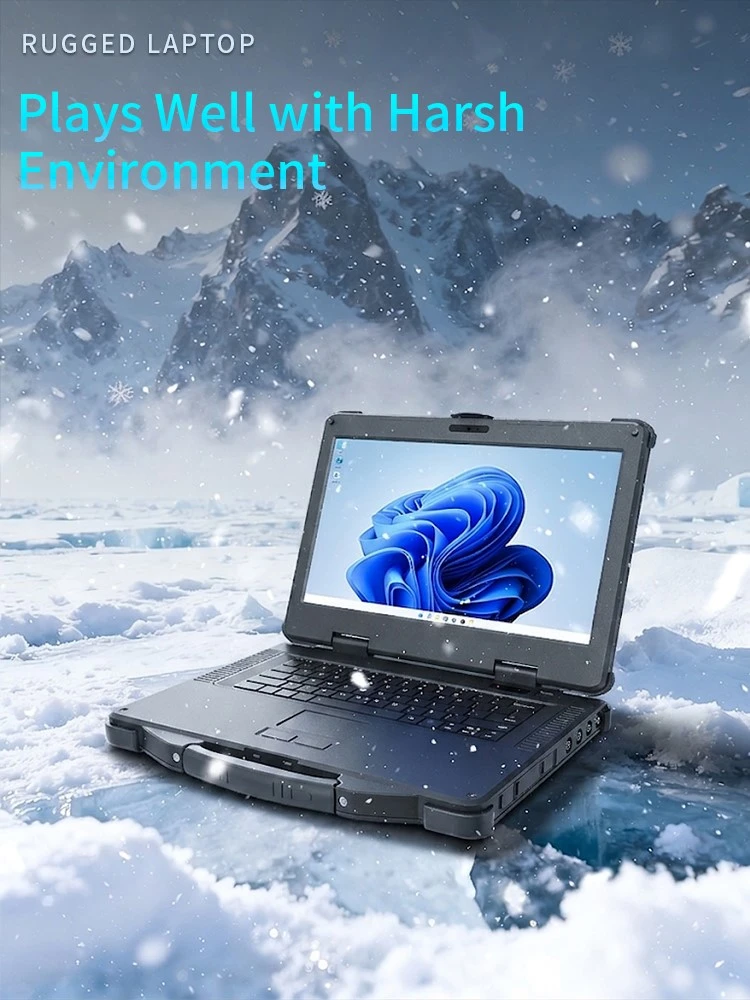

Forged for the extremes, this military-grade rugged laptop delivers unyielding performance in temperatures as low as -20°C. With a durable, sealed magnesium alloy body and a sunlight-readable, high-brightness touchscreen, it's the ultimate tool for field exploration. Navigate, manage, and succeed, no matter the conditions. Your work, without compromises.

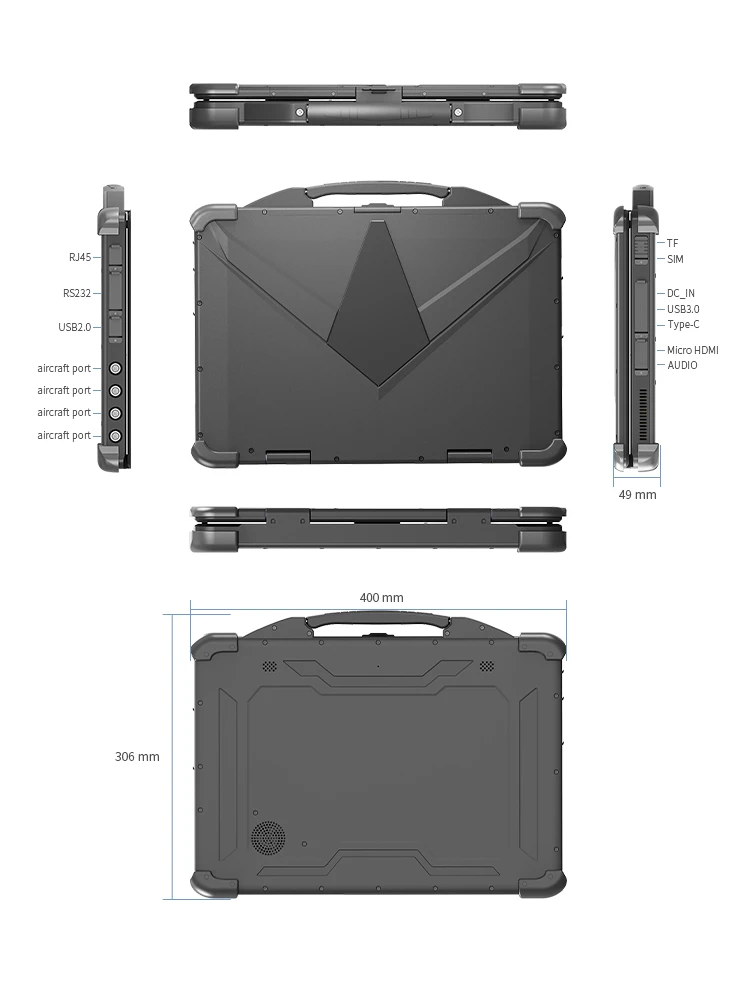

Discover unparalleled field reliability with this rugged terminal, showcasing exclusive quad aircraft ports and industrial RS232. Backed by integrated SIM/TF slots and modern Type-C/USB3.0 connectivity, it is the ultimate secure communication hub for mission-critical operations in harsh environments. Power and performance, protected.
Unleash extreme efficiency with the 12th Gen Intel Core i5-1235U, featuring 16GB/32GB RAM and a 256GB SSD (expandable). Boosted by 4.4GHz speed and a 10nm process, enjoy lightning-fast startups and seamless multitasking for all your demanding applications

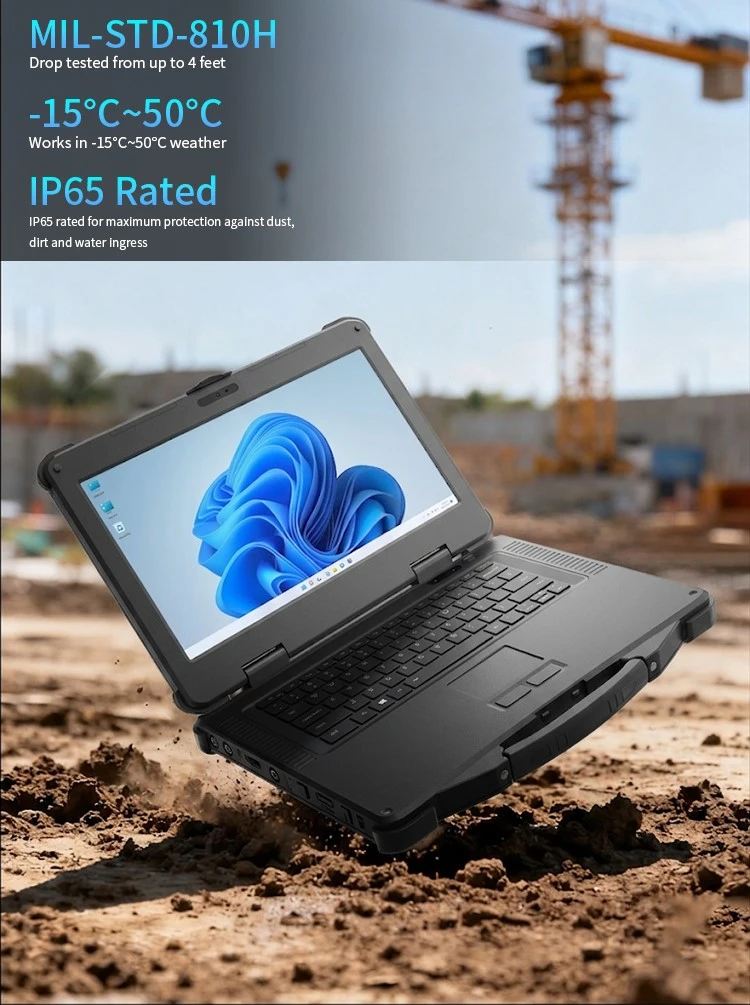

Engineered for ultimate field reliability, this rugged laptop features MIL-STD-810H military-grade durability, including a 4ft drop test. It is IP65 rated for complete dust and water sealing, and works flawlessly in extreme conditions ranging from -15°C to 50°C.

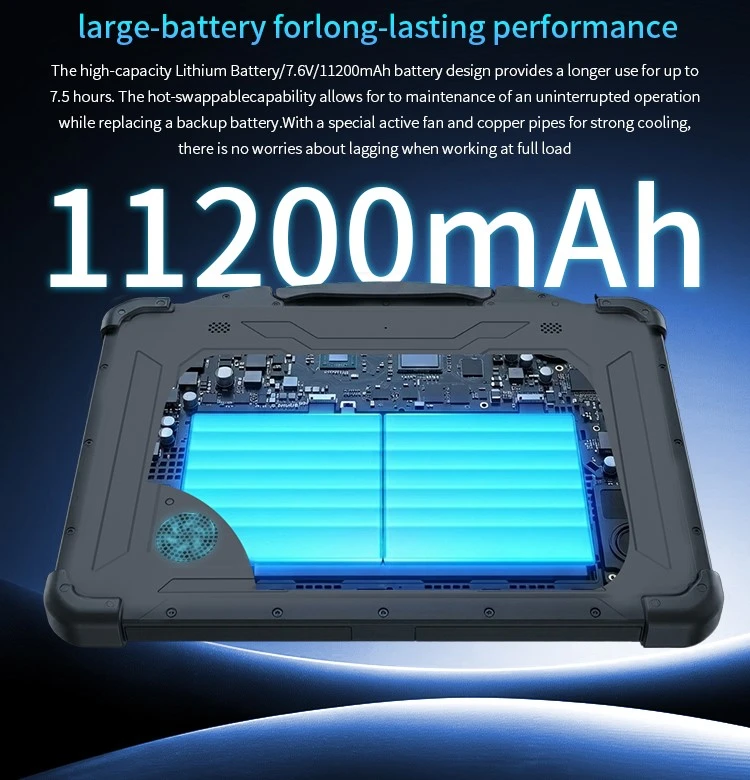

Massive 11200mAh battery delivers up to 7.5 hours of power. The innovative hot-swappable design ensures continuous, uninterrupted operation during battery changes. Coupled with an active fan and copper pipe cooling system, this device maintains peak performance under full load without lagging, maximizing productivity.
Dominate outdoor challenges with our 15.6-inch Rugged Laptop. Its brilliant 1000nits High Brightness display with 1920x1080 resolution guarantees perfect sunlight readability and remarkable clarity. Maximize field efficiency with the full-featured keyboard, including a numeric keypad. Work smarter, not harder.

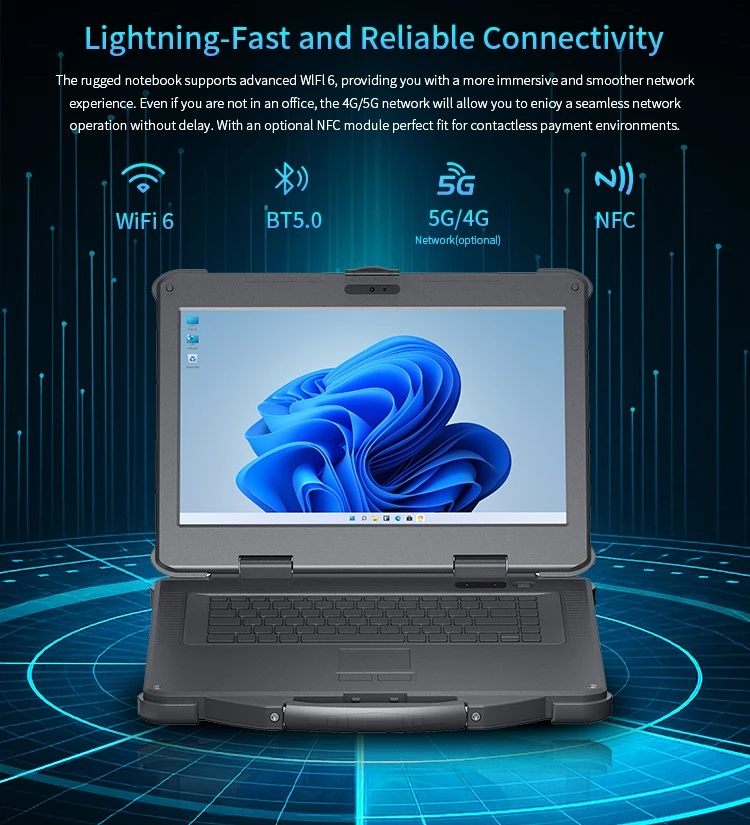

Experience lightning-fast, reliable connectivity anywhere with this rugged notebook. Featuring advanced WiFi 6 and Bluetooth 5 for smooth local networking, plus optional 4G/5G capabilities for seamless, delay-free operation out in the field. It also includes an optional NFC module, perfect for secure, contactless interactions in demanding environments.

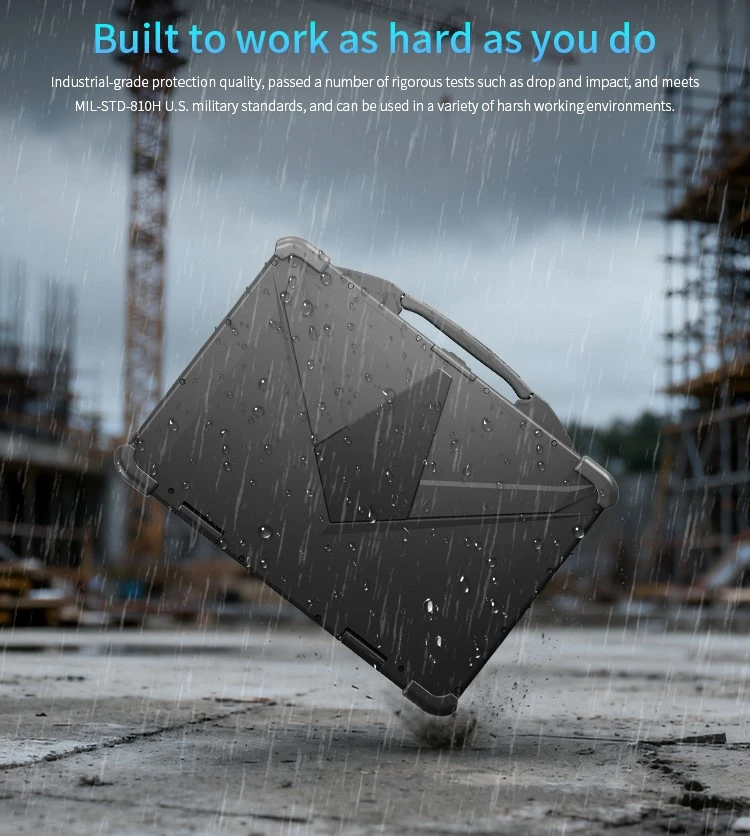

Engineered for extreme conditions, this MIL-STD-810H certified rugged laptop resists intense drops, dust, and moisture, matching your unyielding work ethic. It features an optional high-sensitivity touch screen that adapts seamlessly to gloved fingers or precision pens, ensuring flawless operation in demanding field or industrial environments.

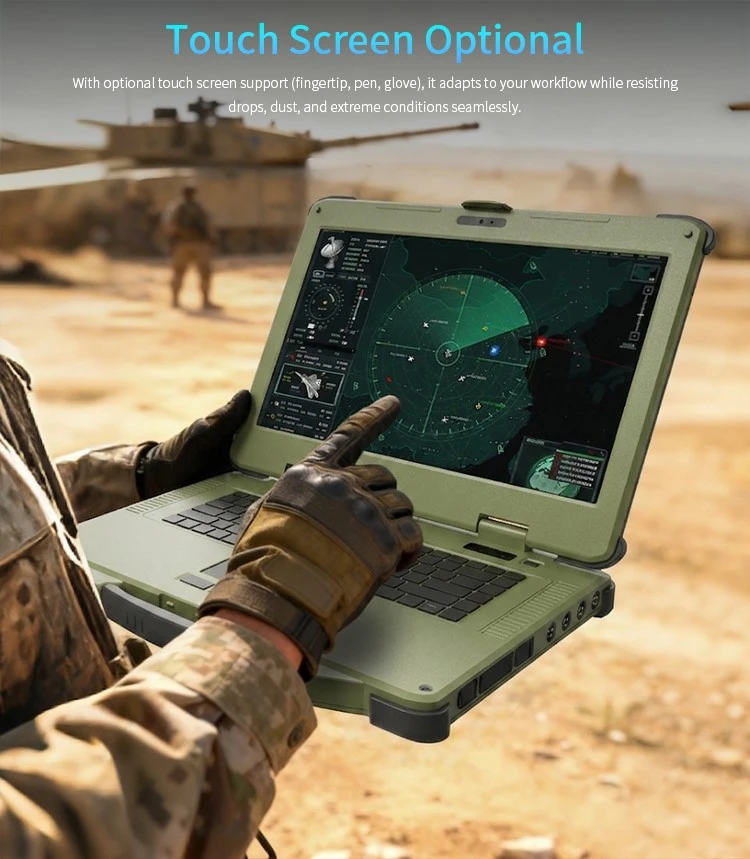

This rugged laptop features an optional, versatile touch screen, compatible with fingertips, pens, and gloves for flawless input in any setting. Built to resist drops, dust, and extreme conditions, it's a dependable tactical tool for critical operations and demanding field workflows.

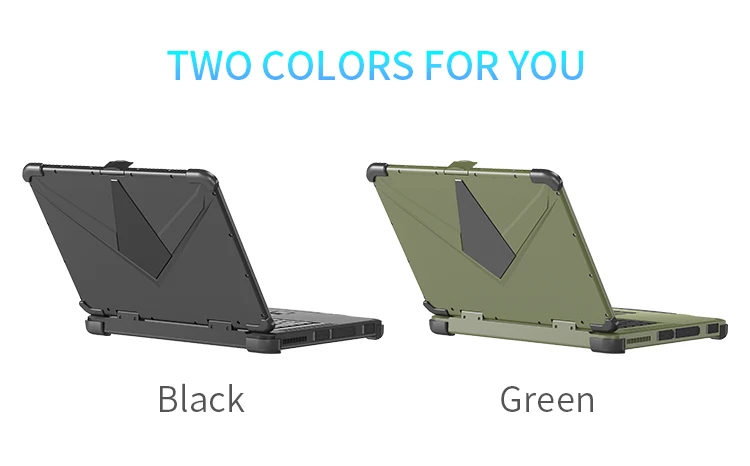

Personalize your rugged gear with two optional colors: tactical Green or industrial Black. Whether blending into outdoor environments or maintaining a sleek, professional look on the job site, both variants offer the same uncompromising reinforced armor to protect your essential data everywhere.
Excel across demanding industries. This rugged laptop is engineered for field service, manufacturing, warehouses, oil & gas, surveying, and construction sites. Its durable design ensures uninterrupted performance in harsh environments. The ultimate versatile tool for professionals needing reliability wherever they go.
